ZEISS Precision Shooting

ZEISS Pro-Series MAX-DUTY Tripod Kits

Built for speed and stability.

In precision rifle competition, it comes down to the final score and time of completion to determine the winner. There are no excuses! Knowing this, ZEISS introduces the Pro-Series Tripod Kit – MAX-DUTY model. It offers massive 44 mm diameter, 10-layer carbon fiber legs, coupled with an exclusive and highly innovative single-point leg adjustment system for fast deployment and stowing of the three-section leg(s). This saves approximately 7-15 seconds of valuable set-up time for each respective stage of the competition.

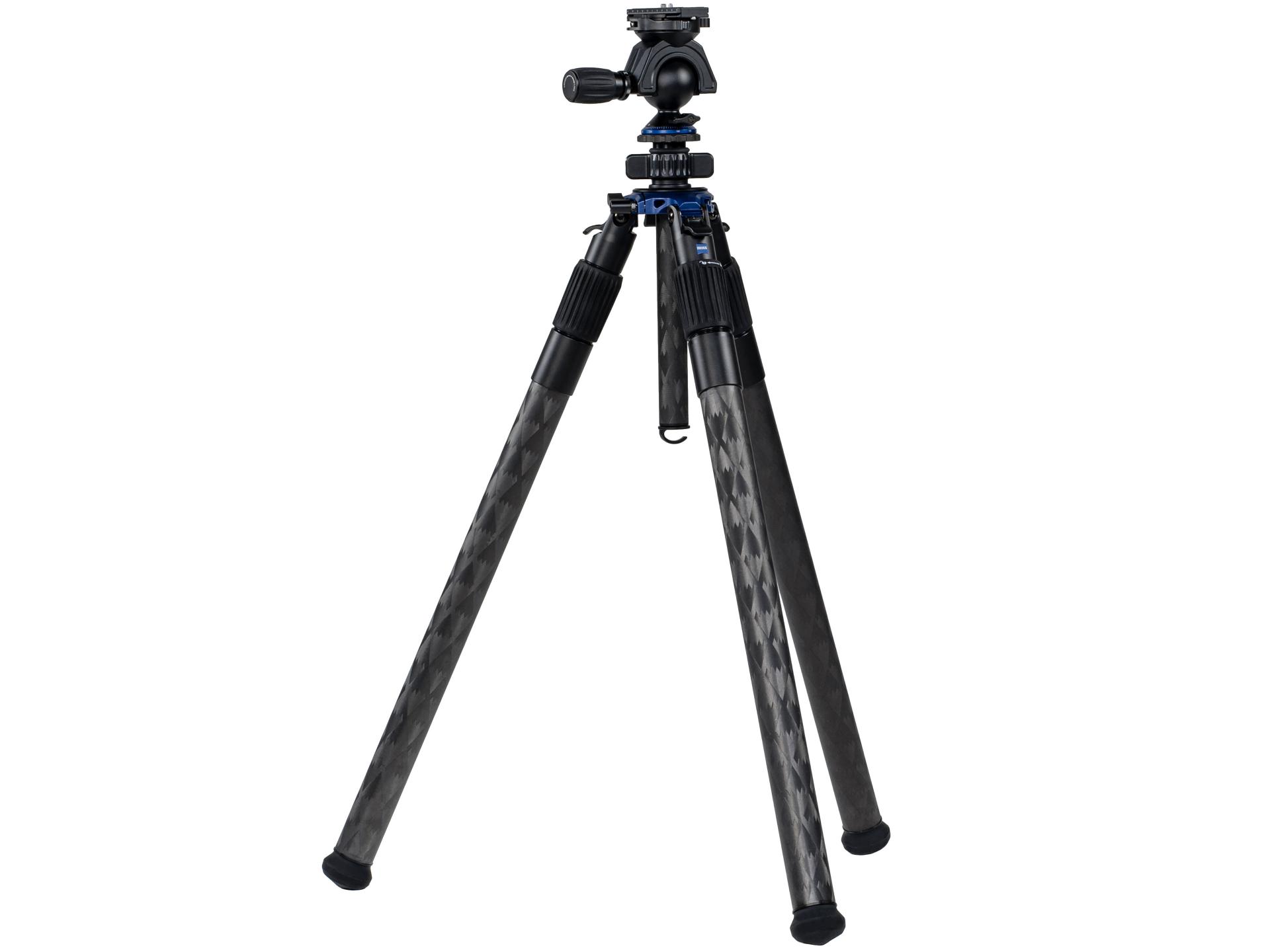

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.

MAX-DUTY V

The MAX-DUTY V includes Ballhead V-60 (Versatile), having 115 degrees of adjustment. This provides a greater amount of tilt angle adjustments over multiple compound directions.

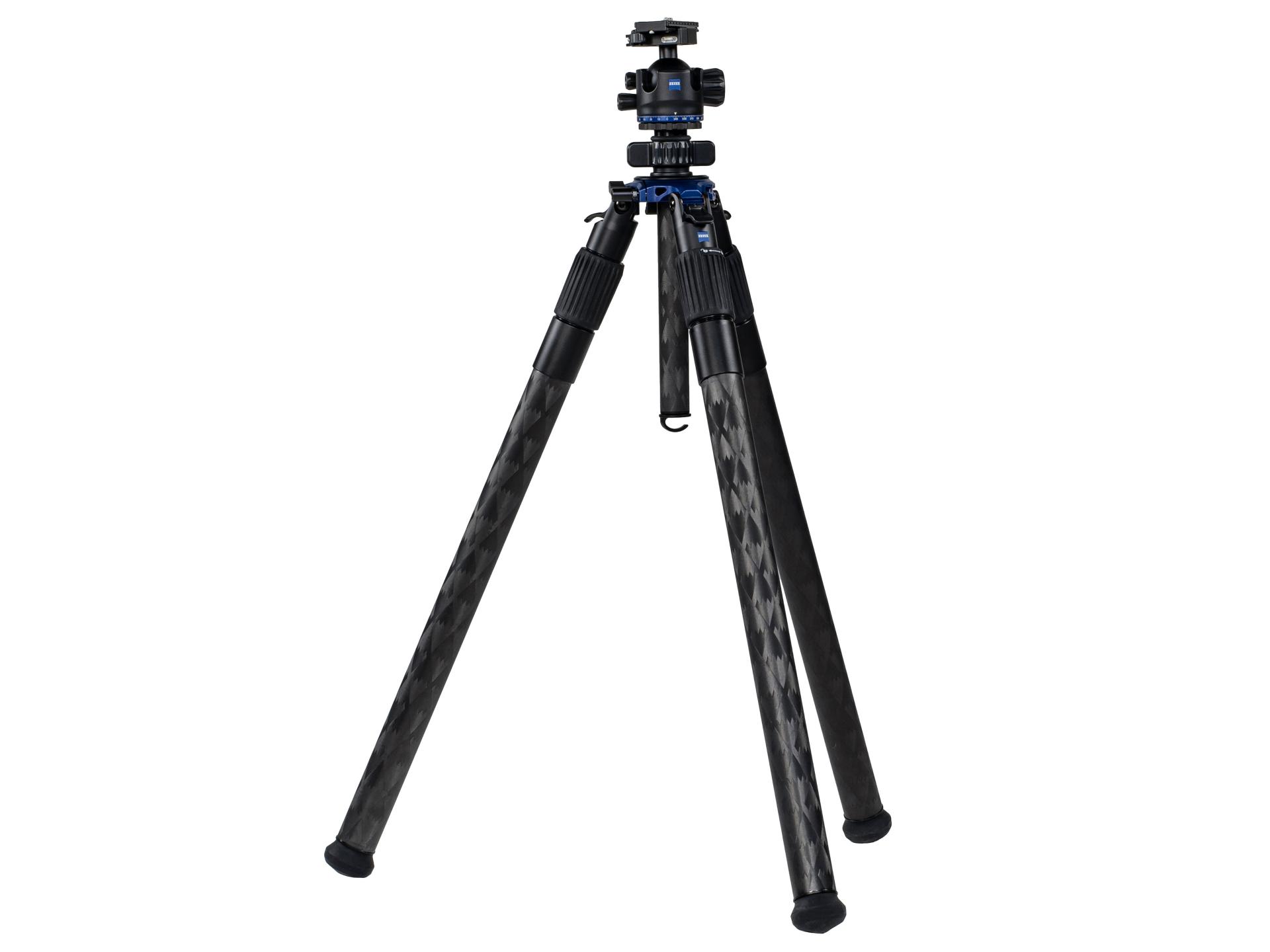

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.

MAX-DUTY L

The MAX-DUTY L comes with Ballhead L-55 (Low Profile) allowing adjustments up to 90 degrees. The lower profile of the head provides more overall stability. It is 3 cm | 0.8 inches shorter at full length than the V model, and weighs 0.2 kg | 0.5 lbs less.

Introduction Video

ZEISS Pro-Series Tripod Kit - MAX-DUTY for Precision Rifle Competition

In this video, our competitors dive into the features and benefits of the Pro-Series Tripod Kit - MAX-DUTY, designed for unmatched stability and versatility in precision rifle shooting. This advanced competition-ready tripod comes equipped with a highly versatile ballhead, a removable center column, and essential accessories – all bundled together for a seamless purchase experience.

A man is using ZEISS optics mounted on a tripod while aiming outdoors under a clear blue sky.

Exceptional Stability

  • Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)
  • Large, thread-in rubber feet for stay-in-place footing
  • Multi-angle leg positions consisting of 24, 55, and 85 degrees
  • Multiple adjustments for hassle-free stability

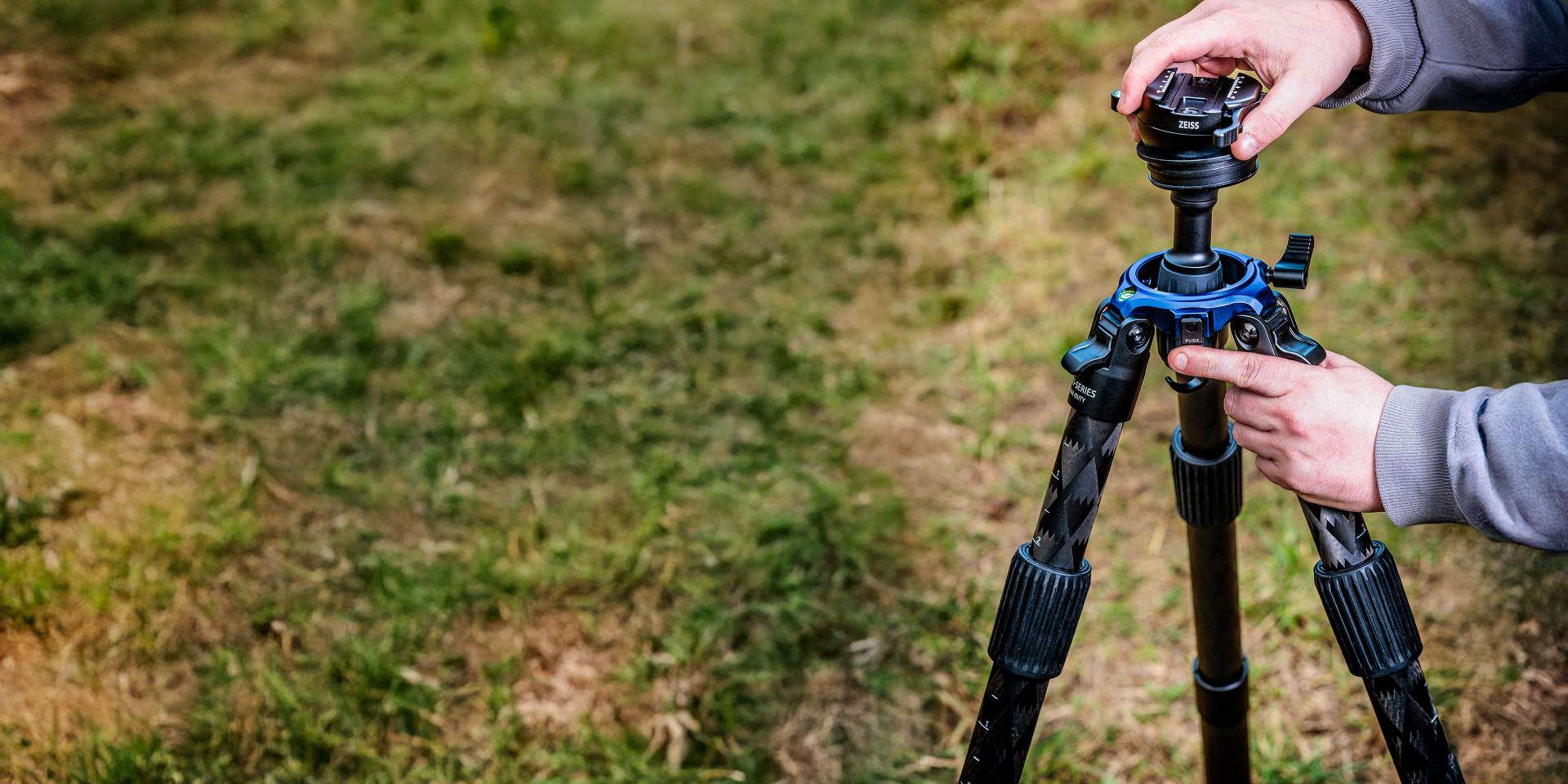

Person adjusting the head of a professional tripod setup on grass, with visible blue ZEISS components.

Fast & Easy Setup

  • Inverted 3-section leg design for ultimate compactness
  • Single-point leg adjustments with extended Twist-Locks
  • Modular, open apex system for maximum versatility
  • Removable through-the-center column for easy height adjustments
  • Easy-press leg adjustment mechanism
A man lies prone in a grassy field aiming a rifle equipped with a ZEISS scope, with a forested landscape in the background.

Robust Design

  • Machined aluminum frame and joints
  • Black, anodized finish
  • 10-layer, matrix-pattern, heavy-duty carbon fiber legs
  • Laboratory and field tested via thousands of cycles and various extreme environmental conditions

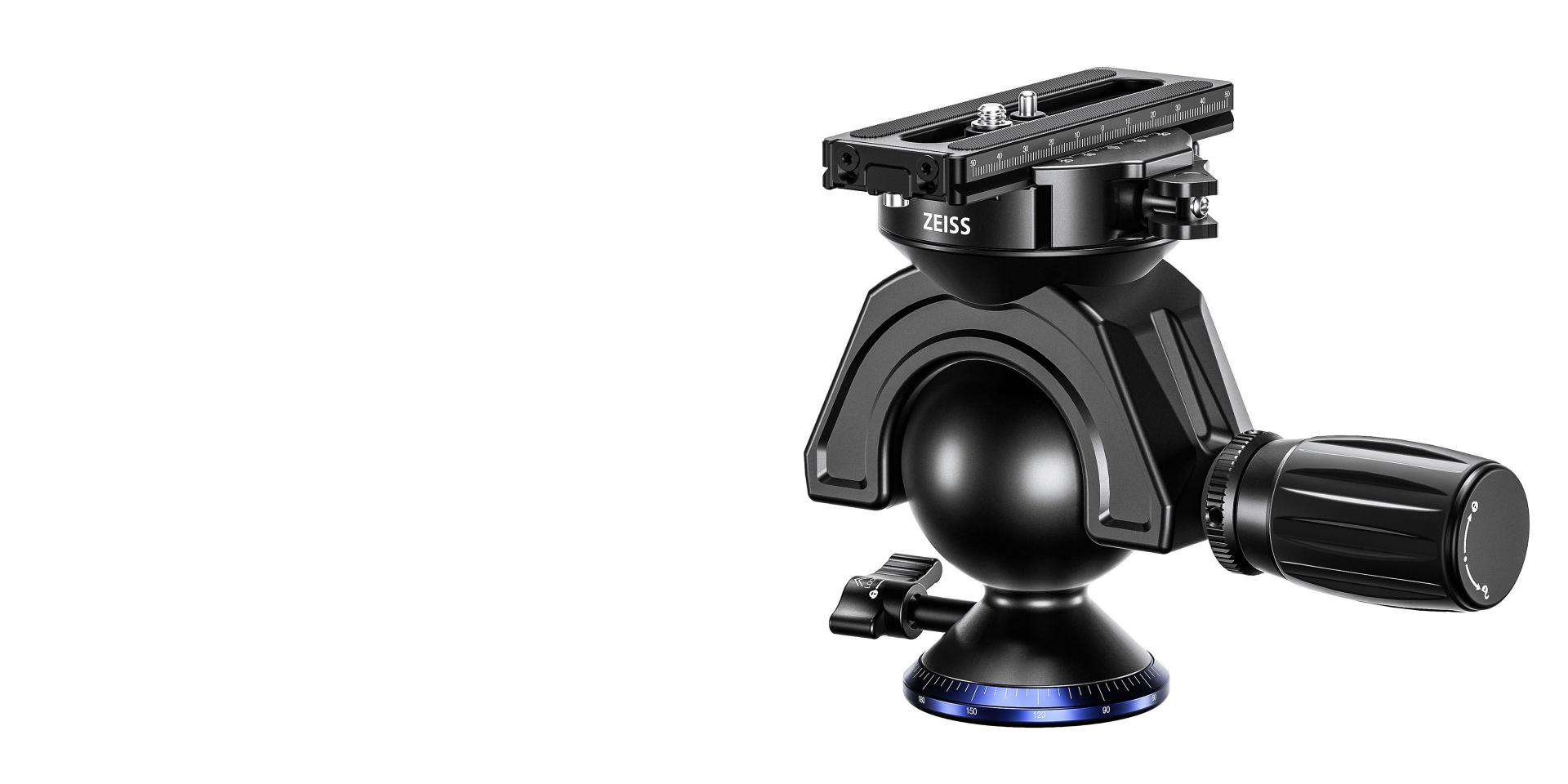

Black ZEISS tripod ball head with adjustable knobs and mounting plate, displayed on a white background.

Secure Connection

  • Arca-Swiss top mounting system
  • 3/8” Thread-on head
  • 1/4-20 extended balance plate with rubberized anti-slip strips
  • Strong, adjustable, ergo-friendly clamps and knobs

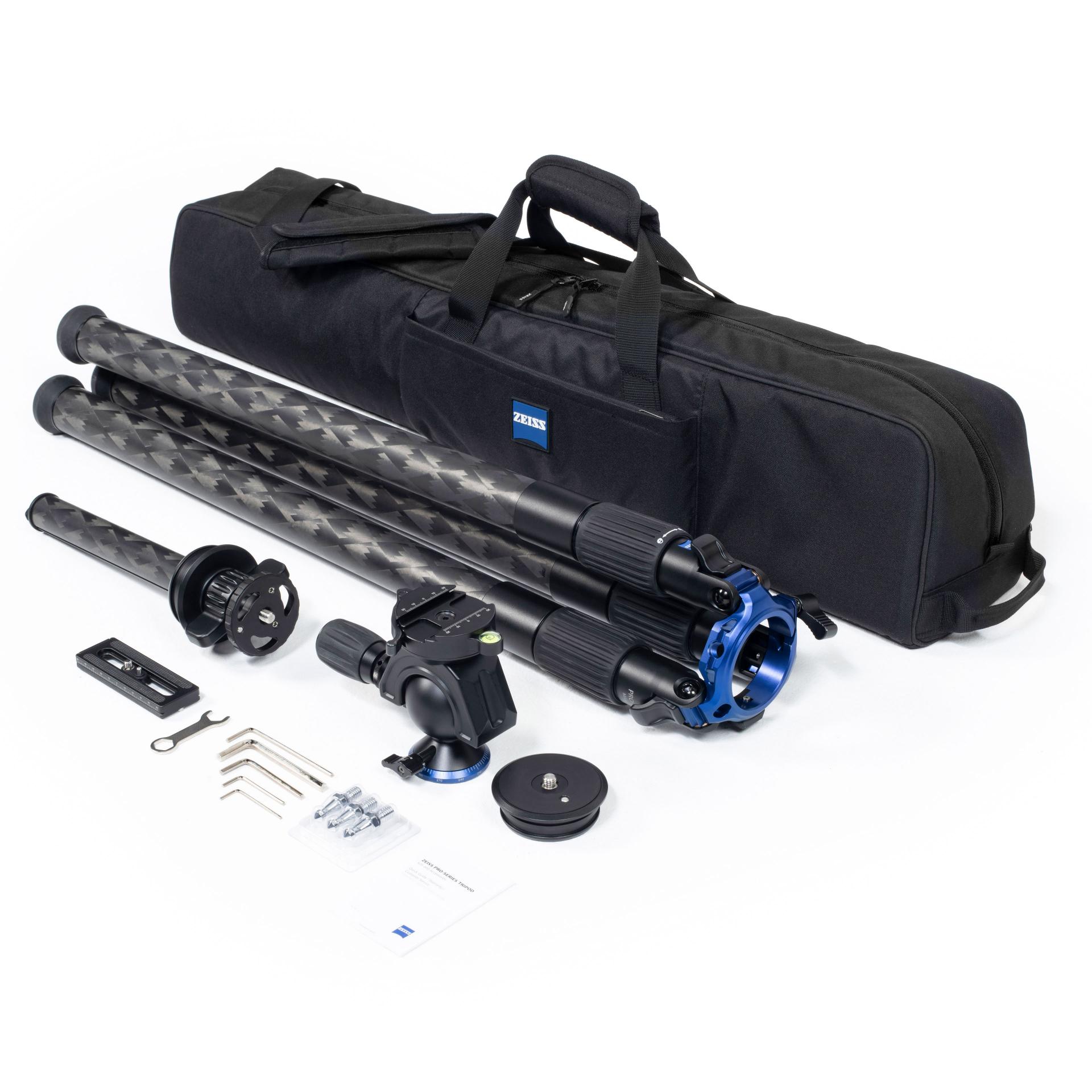

  • Carbon fiber tripod kit with multiple components, including a tripod head, mounting accessories, instruction manual, and a black carrying case featuring the ZEISS logo.

    With Ballhead V-60

  • Camouflaged ZEISS trail camera with a large external antenna, shown mounted inside an open protective case.

    With Ballhead L-55

What's included in the kit?

  • MAX-DUTY Tripod
  • Ballhead V-60 or Ballhead L-55
  • Removable Center Column
  • Flat Plate Adapter with 3/8” Stud
  • 1/4-20 Extended Adapter Plate
  • Tripod Bag with Shoulder Strap
  • Tool Kit
  • Spiked Feet
  • Quick Guide

Technical Data

ZEISS Pro-Series Tripod Kits
  • Head Type

    Ballhead V-60

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.2 kg | 11.4 lbs

    Weight (With Head, With Center Column)

    5.5 kg | 12.1 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    187 cm | 71.5"

    Compressed Length (With Head, With Center Column)

    101 cm | 39.8"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

  • Head Type

    Ballhead L-55

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.0 kg | 11.0 lbs

    Weight (With Head, With Center Column)

    5.3 kg | 11.8 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    184 cm | 69.7"

    Compressed Length (With Head, With Center Column)

    99 cm | 38"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

Garantía de 10 años.

Al registrar su trípode, activará automáticamente nuestra garantía de 10 años.

Cabezas y accesorios a juego

ZEISS Trípode Pro-Series Kits

Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.
Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.

Cabeza de bola V-60

El cabezal de bola ZEISS Pro-Series V-60 es extremadamente versátil y ofrece un amplio rango de ángulos de inclinación y ajustes compuestos. El ángulo de inclinación de hasta 115° es suave y preciso, lo que le permite encontrar el ángulo perfecto en todo momento. La resistencia al movimiento del cabezal se puede adaptar fácilmente para acomodar diferentes pesos de diversos dispositivos montados.

Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.
Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.

Cabeza de bola L-55

La cabeza de bola ZEISS Pro-Series L-55 es una cabeza de bola popular, fiable y estable. Con su familiar diseño de perfil bajo, ofrece hasta 90° de ajuste total para los dispositivos montados. El cabezal funciona suavemente, con ajustes precisos, lo que facilita encontrar la posición perfecta para la óptica o el dispositivo montado.

Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.
Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.

Cabezal nivelador Q-75

El cabezal nivelador Q-75 ofrece un acceso rápido. Es compatible con Arca-Swiss e incluye un adaptador de 75 mm. El ajuste con una sola manija cuenta con un gancho extendido para mayor comodidad.

Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.
Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.

Bolsa de accesorios

La bolsa de accesorios de ZEISS está diseñada para añadir peso adicional a su trípode y conseguir una mayor estabilidad, especialmente en condiciones de viento o cuando se utiliza un equipo más pesado. También sirve como una solución práctica para el almacenamiento temporal de equipo adicional.

Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.
Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.

Riel para múltiples dispositivos

El riel para múltiples dispositivos de ZEISS es un accesorio versátil que le permite acoplar varios dispositivos a la cabeza del trípode al mismo tiempo. Gracias a su compatibilidad con Arca-Swiss y 1/4-20, se pueden acoplar de forma segura diversos dispositivos, como telémetros, telescopios terrestres, prismáticos, cámaras térmicas y mucho más. Esto lo convierte en la solución ideal para maximizar la funcionalidad y la eficiencia de la configuración de su trípode.

Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.
Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.

Pinza para prismáticos

La pinza para prismáticos de ZEISS es adecuada para la mayoría de tamaños y marcas de prismáticos, incluidos los que no tienen montura para trípode. La abrazadera tiene un botón de ajuste ergonómico especialmente desarrollado para una mayor rapidez y facilidad de uso. El ajuste sobredimensionado funciona bien con las manos frías o enguantadas y permite un sistema de fijación muy seguro. Este accesorio, combinado con el cabezal compatible Arca-Swiss de su elección, permite una observación estable incluso en condiciones difíciles.

Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.
Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.

Adaptador de trípode a binoculares 1/4-20

El adaptador de trípode a binoculares 1/4-20 de ZEISS permite fijar de forma rápida y sencilla sus binoculares al trípode. Cuenta con una interfaz Arca-Swiss que garantiza una conexión segura a la rótula del trípode. Su diseño ofrece un agarre cómodo para un manejo y control sin esfuerzo. El adaptador es compatible con los siguientes Binoculares ZEISS: ZEISS Victory SFL, ZEISS Conquest HDX, ZEISS Conquest HD, ZEISS Terra ED 42.

Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.
Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.

Pinza para rifle

La pinza para rifle de ZEISS ofrece una fijación sencilla, rápida y segura para su rifle. Ayuda a garantizar la estabilidad del rifle, el seguimiento y la colocación precisa del disparo en diversas situaciones de tiro. El pomo ergonómico proporciona un mejor agarre y control del ajuste para garantizar un apoyo seguro y fiable del rifle. Además, los usuarios finales también encuentran este accesorio útil de varias maneras cuando necesitan un elemento específico asegurado o apoyado en el campo.
